Corning Museum of Glass Contemporary Art + Design Wing

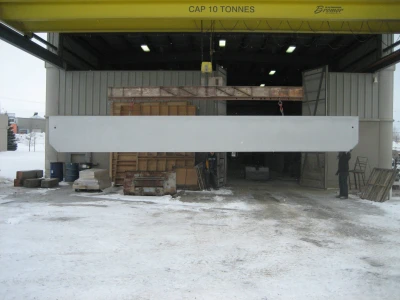

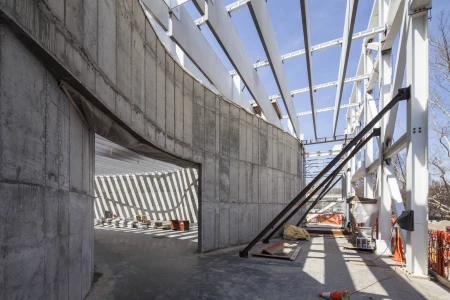

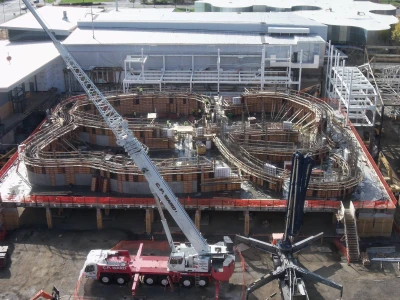

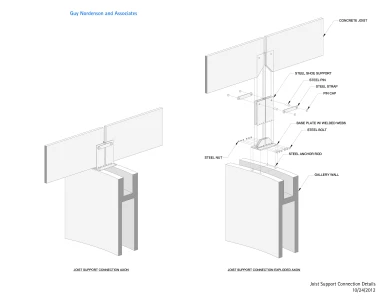

This 10,000sf expansion includes two structurally independent buildings: a new two-story gallery building to showcase the museum’s collection of glass art and a 500 seat amphitheater for live glassmaking presentations in a retrofitted factory building. The gallery’s structural system at the second story consists of a series of 20ft tall cast-in-place concrete serpentine cavity walls. These walls work with a system of wide and shallow concrete “band” beams of the gallery slab that span between cast-in-place concrete columns and shear walls below. The roof consists of closely spaced, exposed precast concrete joists that are 4ft deep, 3.5in thick and span up to 60ft between the serpentine gallery walls and the steel perimeter structure. These roof joists support and diffuse light from a custom fabricated steel skylight structure. At the adjacent Hot Shop amphitheater, self-supporting steel plates and mezzanine on steel plate columns reinforce the retrofitted steel structure.

  • 2011–2015
  • Corning NY
  • Client Corning Museum of Glass
  • Advanced Materials, Alterations, Complex Geometry, Exposed Concrete
  • Awards
    • AEI Award of Merit Architectural Engineering Integration 2020
    • AEI Most Innovative Project under $100M 2020
    • AIA Honor Award for Interior Architecture 2020
    • AIA NY Merit Award 2016
    • SEAoNY Excellence in Structural ngineering Project Finalist Award 2015
Process
