Menil Drawing Institute

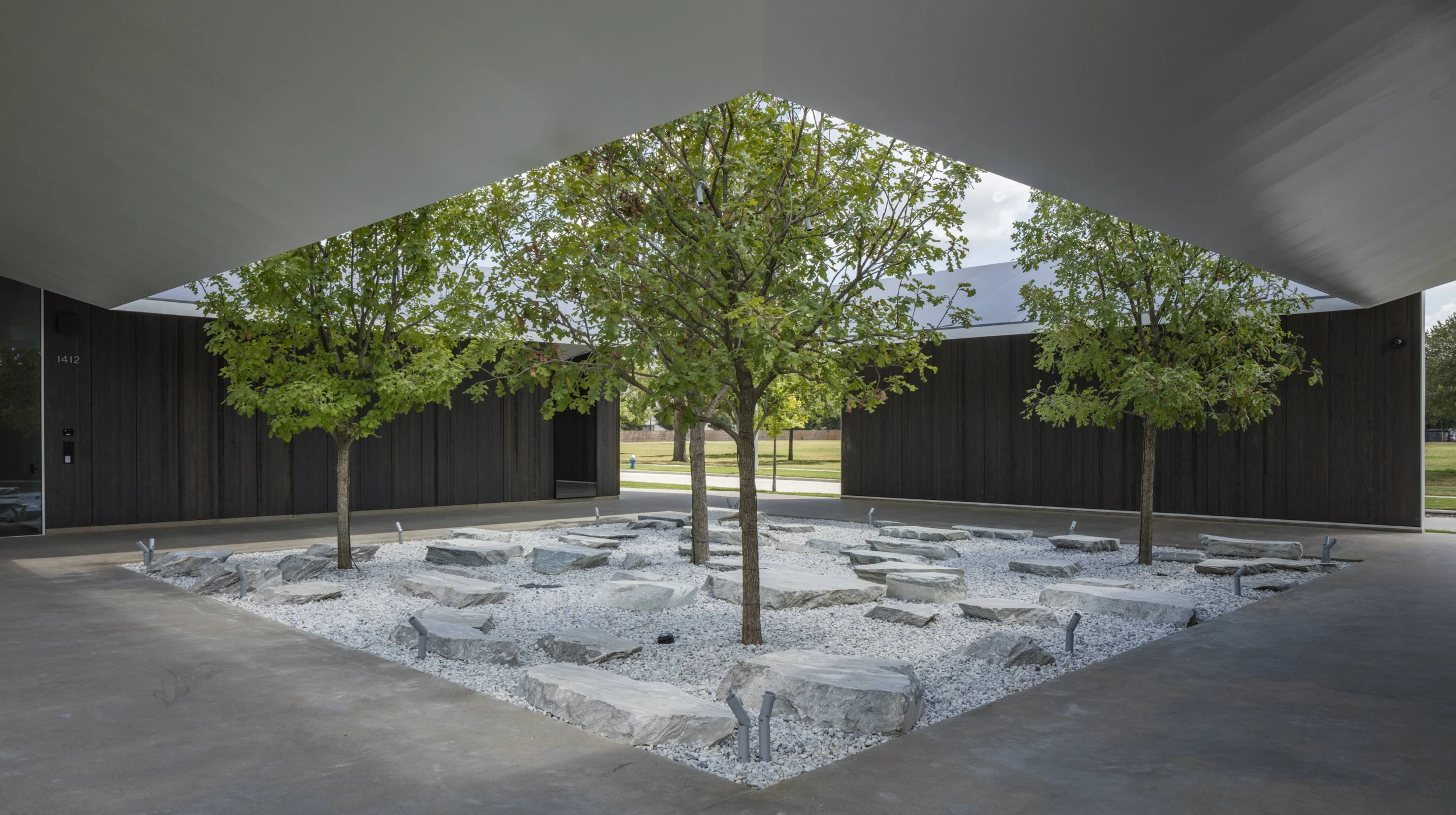

The 30,150sf Menil Drawing Institute is the first freestanding facility in the US created especially for the exhibition, study, conservation and storage of modern and contemporary drawings. The large live oak trees on the site inspired the design of the three square, open-roofed courtyards. Enclosed volumes set between the courtyards provide the main areas for the building’s programs.

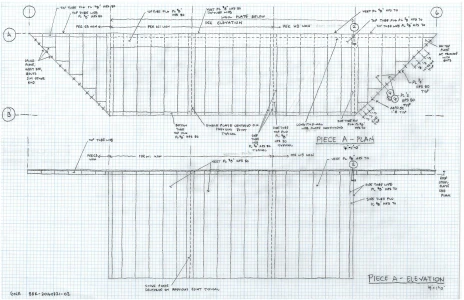

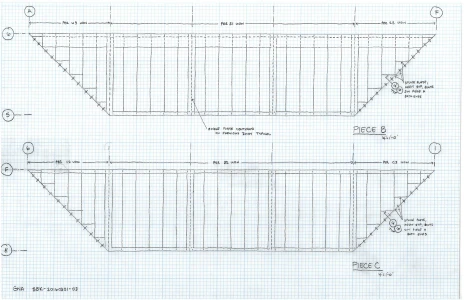

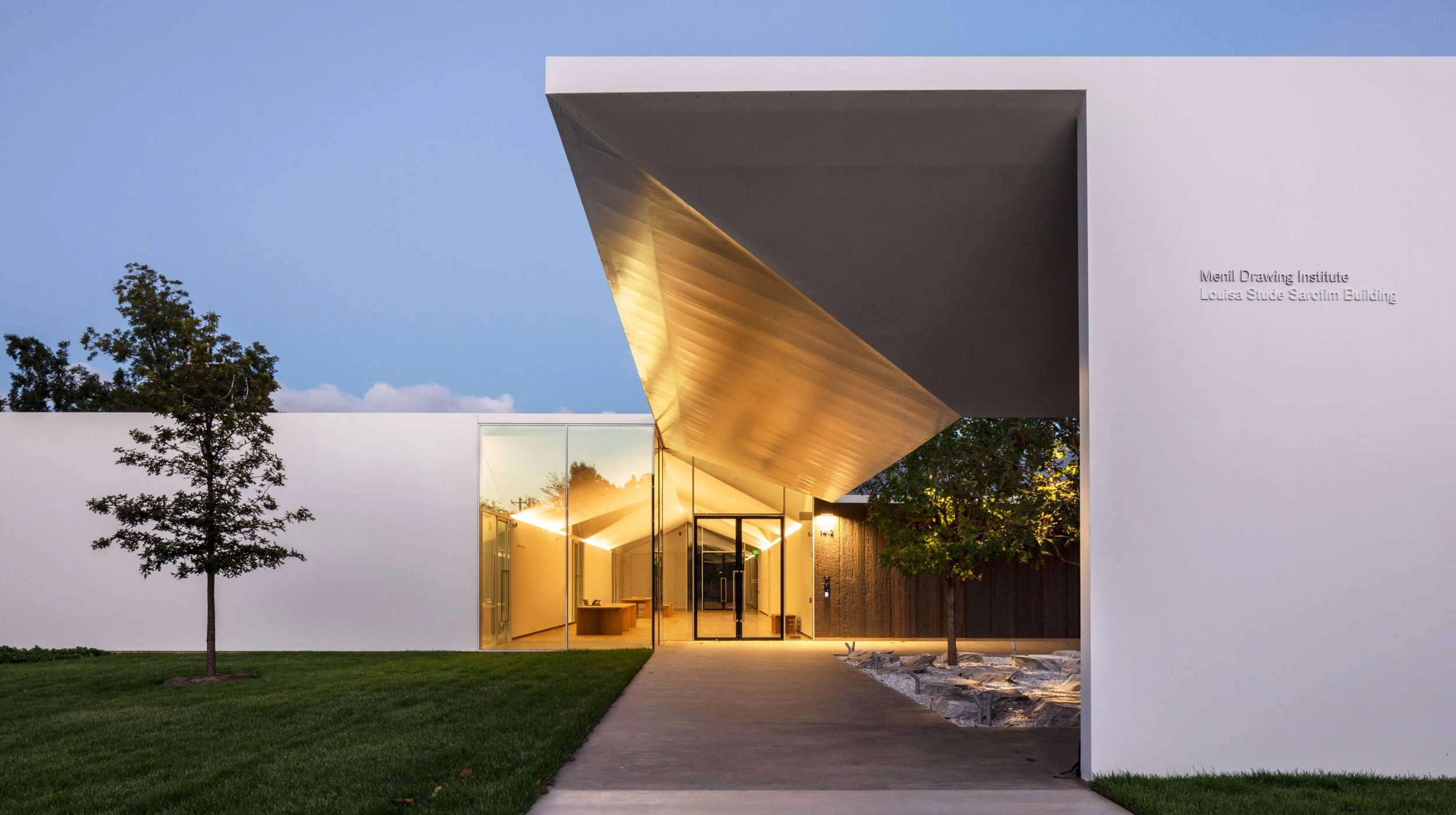

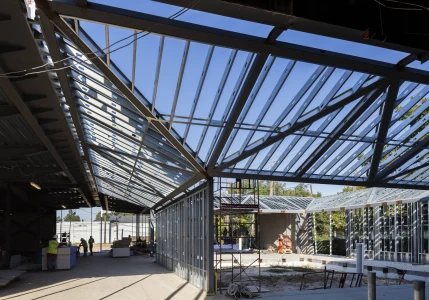

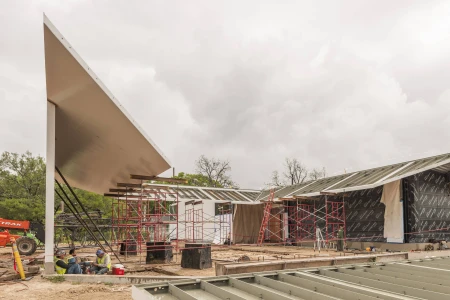

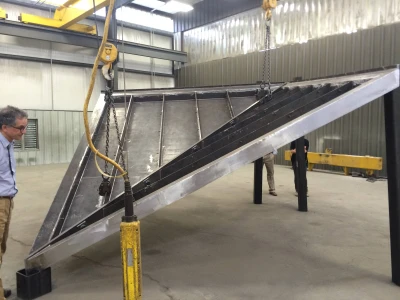

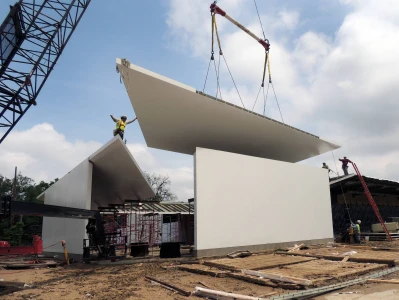

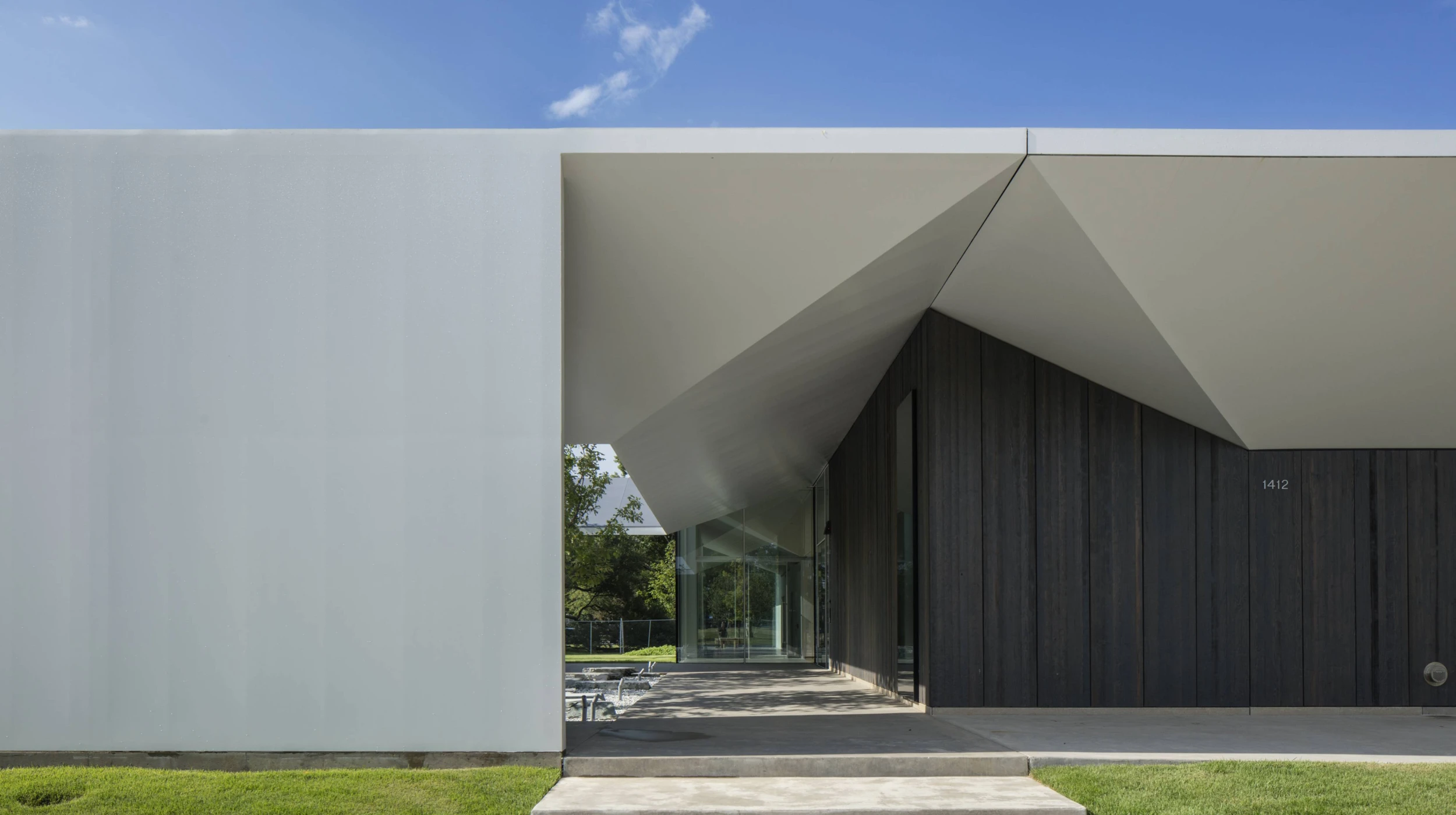

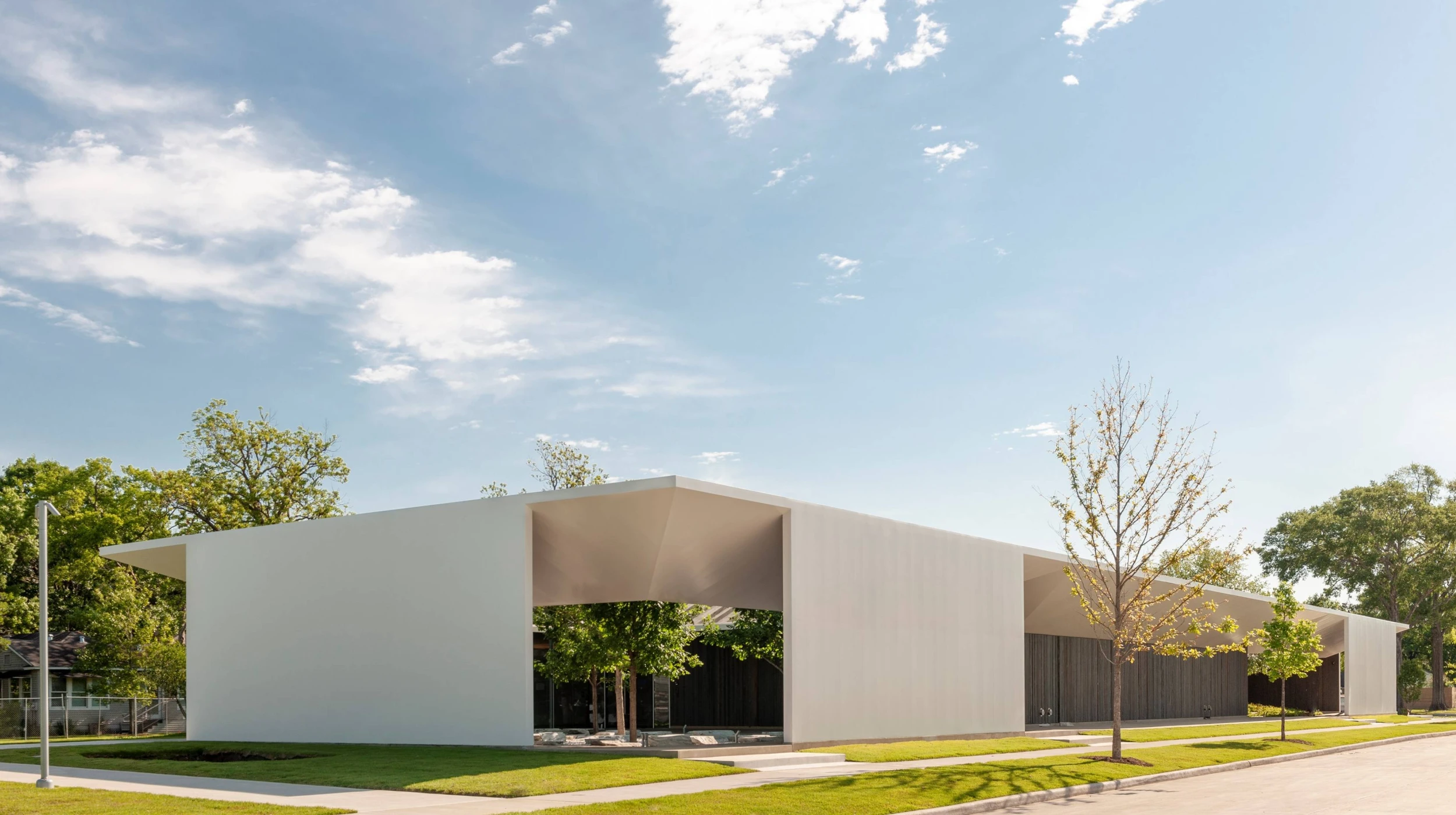

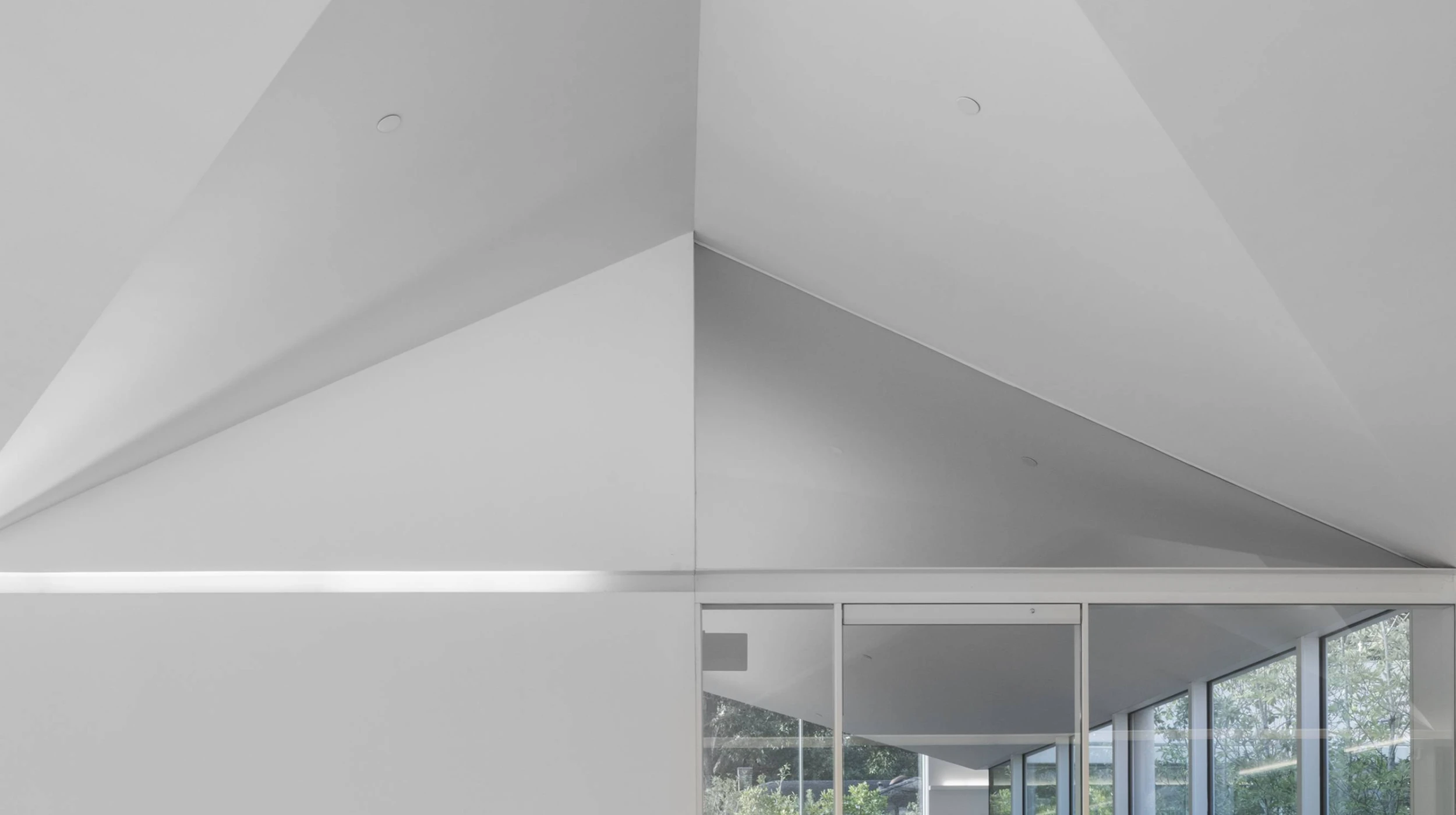

A thin, flat roof made of painted steel unifies the indoor and outdoor spaces. The outdoor courtyard structure is composed of welded folded steel plates with a series of internal steel stiffeners. Shallow steel tube trusses frame the interior courtyard. These steel plate and truss structures allow for unsupported free edges along the courtyards and exterior canopies of up to 60ft in length with minimal structural. The below grade structure includes an art storage vault designed to protect the vault contents in the event of a flood. The storage vault includes passive flood doors, and its floor slab, roof, and walls are made of cast-in-place double concrete.

  • 2012–2018
  • Houston TX
  • Client The Menil Collection
    • Architect Johnston Marklee
    • Structural Engineer Guy Nordenson and Associates
    • Associate Structural Engineer Cardno Haynes Whaley Associates
  • Museums, Roofs
  • Awards
    • AIA Architecture Awards 2022
    • Texas Society of Architects Design Award 2021
    • AIA Houston Architecture less than 50K SF Design Award 2020
    • AIA Los Angeles Design Honor Award 2020
    • Metal Architecture Judges Design Award 2019
    • AN Best of Design Award for Cultural 2019
    • Progressive Architecture Award 2017
    • The Chicago Athenaeum American Architecture Award 2016
Process
