National Museum of African American History and Culture

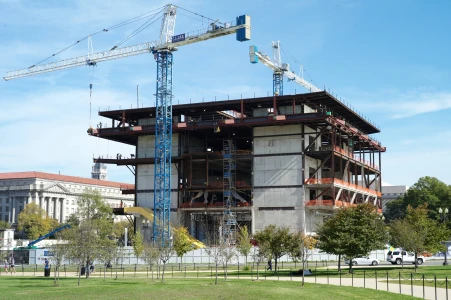

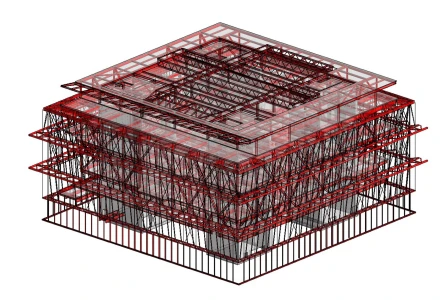

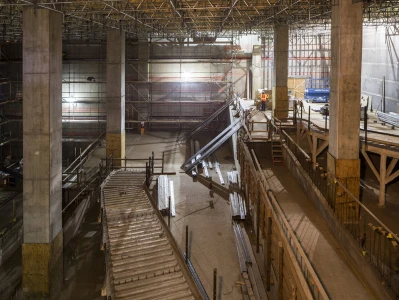

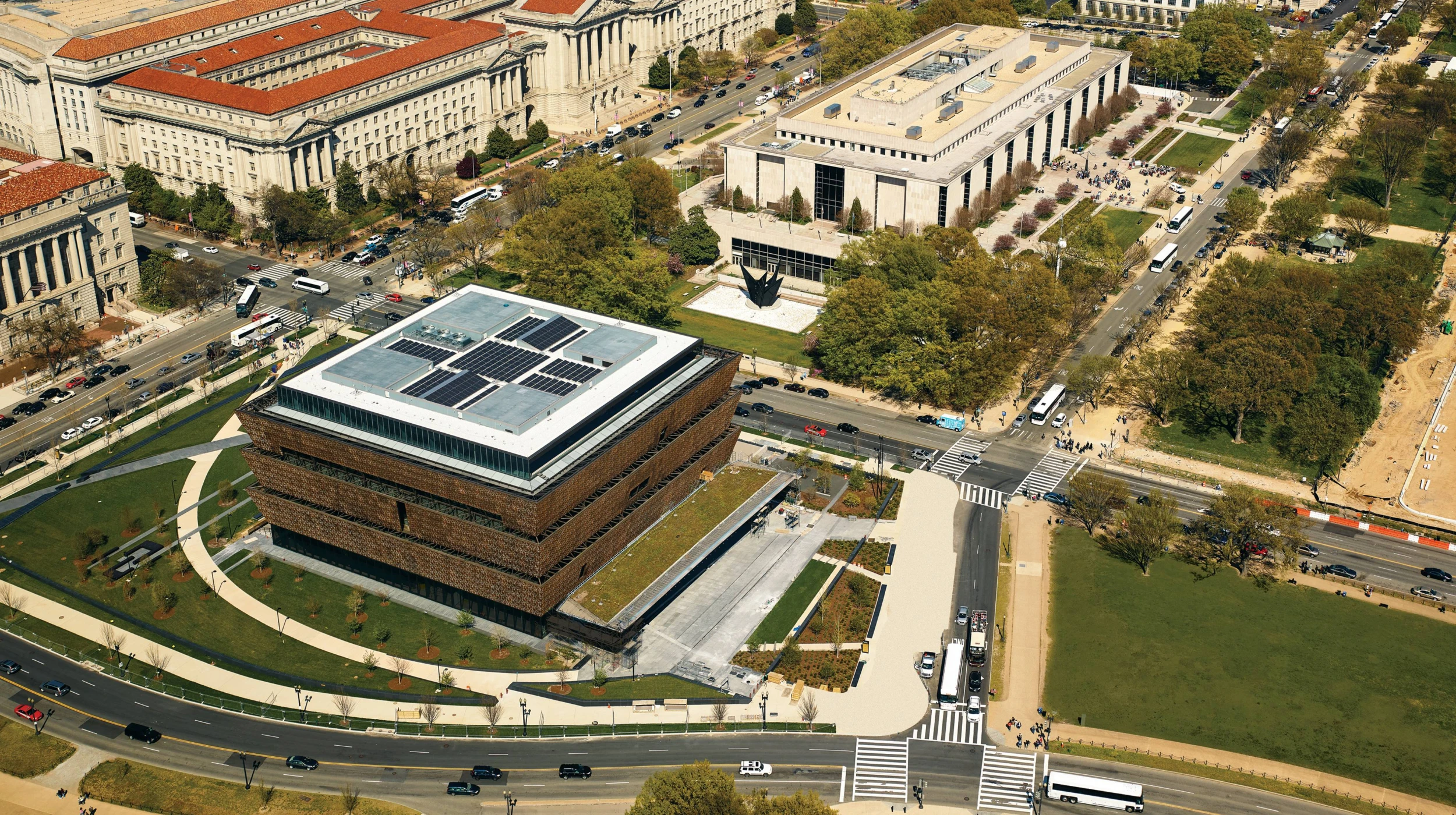

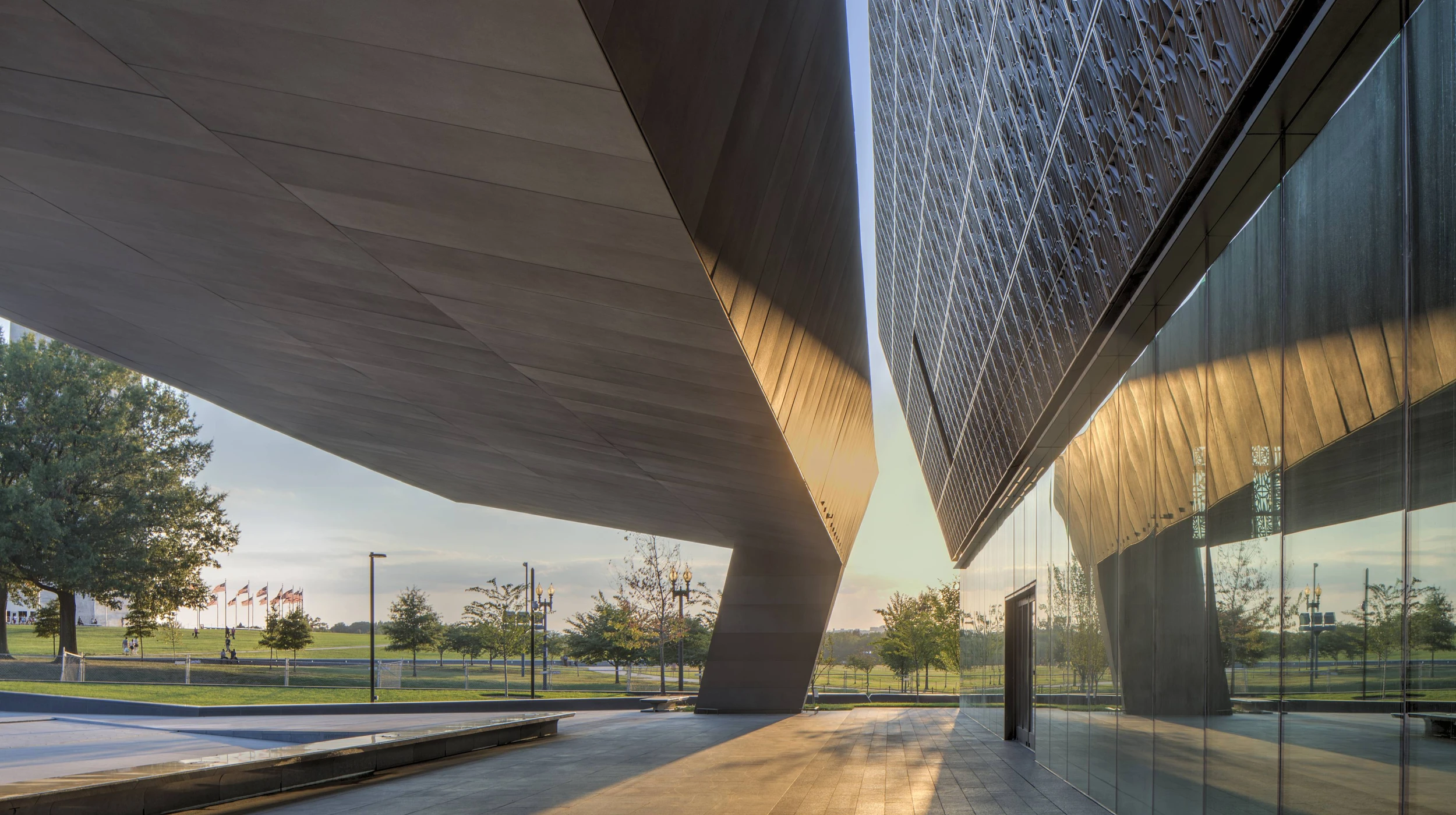

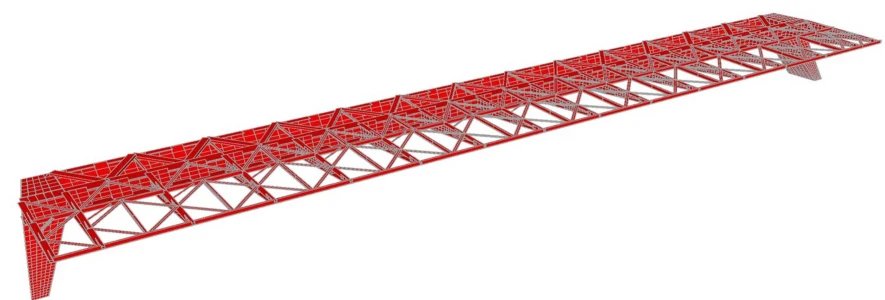

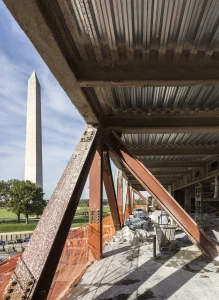

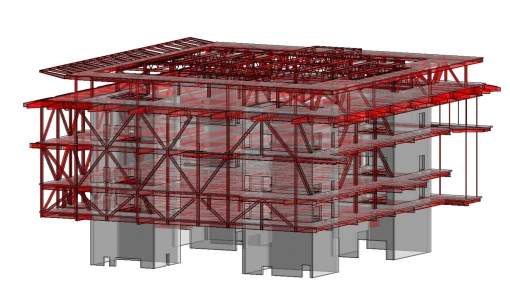

In this striking addition to the National Mall, the museum’s primary architectural gesture is its three-tiered exterior Corona screen wall. The Corona is suspended from the top of the building and forms a continuous atrium, free of structure between the façade and the inner gallery floors, allowing daylight to filter through its patterned bronze cladding and skylights. The above-grade building structure is entirely supported on four composite steel-and-concrete cores, creating an open lobby space that highlights its curved, custom ceiling. The galleries and administrative level floor framing consist of vertical steel trusses and long-span plate girders cantilevering from the central cores. At the southern entrance to the museum is a steel framed asymmetrical canopy, known as the “Porch,” which spans over 200ft between two piers. The below-grade structure is cast-in-place concrete, except for above the History Galleries. Here, long-span steel framing supports areas at grade with significant landscaping and flood loads.

  • 2009–2016
  • Washington DC
  • Client The Smithsonian
    • Architect Freelon Adjaye Bond/SmithGroup
    • Structural Engineer of Record, Superstructure Guy Nordenson and Associates
    • Structural Engineer of Record, Substructure Silman

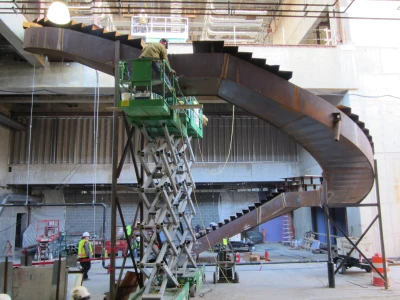

  • Museums, Stairs
  • Awards
    • AIA Institute Honor Award 2019
    • SEAoNY Excellence in Structural Engineering Award 2018
    • AIA NY Best in Competition Award 2018
    • AISC IDEAS2 Award 2017
    • Building Design + Construction Gold Building Team Award 2017
    • NAIOP DC/MD, Award of Excellence - Best Institutional Facility, and Best of the Best Building 2017
    • AIA North Carolina Merit Award, Institutional 2017
    • AIA DC Excellence in Architecture Award 2017
    • Beazley Designs of the Year, Architecture 2017
    • Contract Magazine, Interiors Award, ivic/Public 2017
